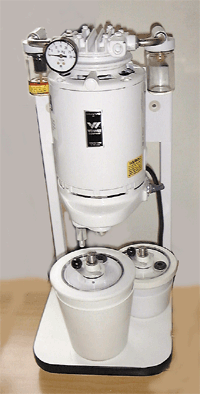

　Wehmer quality and reliability make this mixer your number one choice for bubble-free stone and plaster - giving you beautiful, consistent study models every time. Gypsum products are thoroughly spatulated under 26-29 inches of vacuum for the ultimate in smoothness and the elimination of all possible air voids. This is the easiest-to-use machine of its type available to the private practice or commercial laboratory. Wehmer Vacuum Spatulators are delivered with the following standard features designed to make your life easier:

• Precision vane-type vacuum pump is tremendously reliable and easy to service.
• Vacuum and spatula drive are engaged and disengaged from the bowl simultaneously, in one quick easy motion while the machine is running.
• Oiler/ filter jar provides continuous lubrication to the pump.
• Two stage bronze muffler/exhaust jar captures excess lubricant preventing splatter on walls and keeping the machine pleasantly quiet.
• Teflon coated agitator paddle for easy clean-up.
• 800cc and 300cc bowls are flexible plastic for easy removal of dried plaster, and are inexpensive to replace.
• Bowl lids disassemble easily for cleaning.
• A special plaster trap built in to the bowl lid assures that no gypsum/water mix gets sucked into the pump.
• Factory-direct service and support that backs up all Wehmer products.
• Available with convenient table stand or for wall mounting.

　基本価格 107S/100V 50Hz,60Hz(スタンド付) -

FOR PROFESSIONAL USE ONLY.

In order to better meet the needs of our commercial laboratory customers and high volume practices, PRO-TRIM model trimmers offer a number of standard features which make these machines more effective and efficient than any other line of trimmers we know.

Both single and dual wheel PRO-TRIM models are fitted with heavy duty 3/4 HP motors- delivering 50% more horsepower than our standard Wehmer trimmers. Then...we added our new Wehmer Diamond Trimmer Wheel to replace the standard silicon-carbide coarse wheel, resulting in a 40% faster cutting rate and a smoother finish on plaster, stone, epoxy and acrylic models. All this while lasting 20 (or more) times longer than standard resinoid wheels. The entire cast aluminum trimmer housing is covered with a gloss white powdercoat finish - inside and out - to provide maximum protection and easy cleaning. An electric solenoid water control valve is standard equipment. It all adds up to one aggressive cutting machine that's tough and good looking, and that will allow professional laboratory technicians to maximize their time and abilities.

デュアルトリマー　108P/100V 60Hz Dual Wheel PRO Trimmer -
シングルトリマー　1250P/100V 60Hz Single Wheel PRO Trimmer -
　このプロモデルトリマーは60Hz地区（大阪）のみ対応しております。50Hz地区（東京）のユーザーはW108またはW125を購入してダイヤモンド交換ホイールと電磁弁、ライトを購入してください。オプションは トリマーアクセサリー をご覧ください。

The most amazing innovation in trimming technology since the electric powered model trimmer! REALLY!!

Diamond abrasives offer the laboratory technician a new level of performance and longevity in model trimming applications. How can diamond trimming technology benefit you?

It's FAST - diamond abrasives cut almost 40% faster than silicon carbide/ carborundum grinding wheels. Imagine reducing your rough trimming time by 40%! Time is money, and that time savings translates directly into labor cost reduction.

Example - We estimate average rough trimming time at 15 minutes. If your lab tech is grinding 8 sets of models a week, a Wehmer Diamond Trimming wheel will save you 48 minutes per week. That's almost 3.5 hours per month. At an average technician's salary of $12 an hour, you can pay back the cost of the wheel in less than 9 months. The rest is pure profit, in your pocket.

It's EASY! - one of our customers described cutting with the diamond wheel as like cutting into mashed potatoes. Using the diamond wheel really takes the stress and strain off your fingers and hands. You're in control, and less pressure to push means less broken teeth.

It lasts a long, long, long time - the first wheel we made was given to our buddy Jeff who owns a commercial orthodontic lab in Indiana. That was in August of 1993. He rough grinds about 80 sets of stone models every day. We estimate that he has ground over 62,000 sets of models with our wheel. When we're asked how long these wheels will last, we say, We're not sure. We haven't killed the first one yet!

Wehmer Diamond wheels are available in coarse and fine grit, in 10" and 12" diameters, and are made for all brands of model trimmers.

ダイヤモンドホイール、荒目と仕上げ用の２種類があります。
ダイヤモンドホイール・プライムカット（ステンレスの裏打ちタイプ）

アルミニウム Plaster Trap #16410
レベルゲージで沈殿物濃度を確認できます。

Flex Hose Adapters（アルミニウムトラップ用）
アルミニウムトラップのためのホースアダプターです。
トラップ用と配管用がございます。
#16426 Flex Hose トラップ用
#16427 Flex Hose 配管用

ボウル、ボウルカバー

800cc、300ccのボウルとボウルカバーがございます。

#7030　800cc ボウルカバー
#7020　300cc ボウルカバー

#7210　800cc ボウル
#7220　300cc ボウル

ボウル2個セット
