@About CephaloMetrics AtoZ 8.0E

For Windows &Macintosh



CephaloMetrics AtoZ is the trademark of YASUNAGA Computer Systems Co., Inc.
@CephaloMetrics AtoZ
The X-ray image is taken directly

Color images are taken in together

For the explanation to the patient

OrthodonticsESurgical simulation function

Plentiful view formats

It corresponds to digital X-ray

Customizable analysis

Statistical work & file output

Windows &Macintosh version

The X-ray image is taken directly

Taking of X-ray image
1.Taking of X-ray directly from the EPSON scanner(transparency type).
2.Taking of X-ray from IP plate type scanner.
3.A JPEG file is read from the CCD digital X-ray.
It is output by the JPEG file from the X-ray device of each manufacturer, and it can be read.
4. It is possible to take in trace from the WACOM tablet, too.
Calibration
When it doesn't know resolution, take picture of X-ray with measure and so on.
Calibration of the image can do it by inputting two(or four) points.

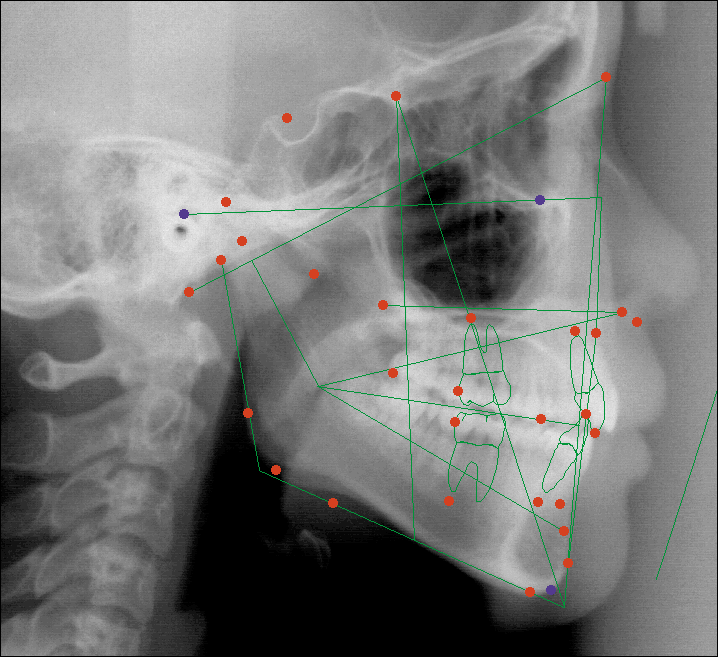

Analysis point input
It makes easy to see by the image enhancement processing, and points input can be done directly on the computer screen.
Points input can be done with referring to a computer voice and a guidance window.
Template point input
All points are indicated as the right figure when three points of Porion, Orbitale and Gnation are input except for the usual input.
It changes for input of lines after each point was dragged with a mouse and input.
A bisectrix is indicated easily
When the position of Gnathion and Gonion is asked, a necessary vertical bisection line can be quoted even in the middle of the point input.
Color images are taken in together

Color image intake
It is possible to take in a slide from EPSON transparency type in the high resolution.
The image of which it took pictures with a digital still camera can be taken in easily, too.
An image is copied by using image management software (Photoshop, etc), and the image of the high resolution can be pasted on CephaloMetrics AtoZ, too.

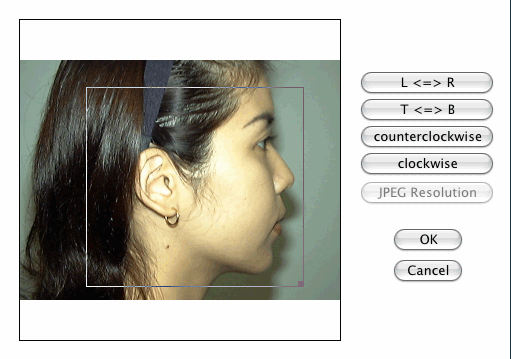

An image can be set up by the intake frame, it is possible to reversal of right-left and up-down, rotation of the right angle.

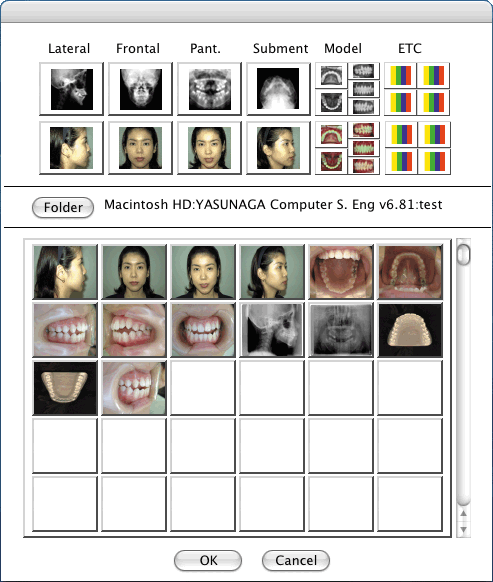

Thumbnail input
An image is dragged and dropped on Thumbnail list, and the JPEG image taken in with a digital still camera can be taken in.
If X-ray image is kept by the JPEG file, it can input by same way.
For the explanation to the patient

Informed consent document
Even if an X-ray image isn't used, an Informed consent document can be made only in the pictures of in the oral cavity taken with a digital still camera.
If it explains to the patient by using that printed document, it will be the start which treatment is begun with.
It can use even if the materials for the explanation of treatment for general dentistry are taken.

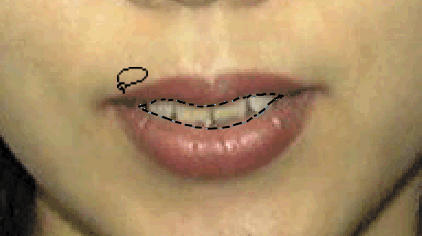

Smile function
The image of brackets and smile can be set on the part of the mouth of the patient image by using lasso tool.
It can show a patient how can to see metal brackets and ceramics brackets in the front tooth part before the treatment.
The diagnosis window it is easy to see
The diagnosis of the frame by APDI/ODI/CF/ Ex.Index, and the tendency of Openbite, and the decision of whether extracting a tooth does or not, and the standard to judge turning back after the treatment, are indicated as a diagnosis window in the cause the clinical case four thousand and more of Dr. Kim.
The facial type of Dr.Ricketts is indicated, too.
This diagnosis window can be printed.
Model analysis
The discrepancy is calculated from an actual row of teeth and Idealarch.
It is convenient for the explanation of the extraction of a tooth to the patient.

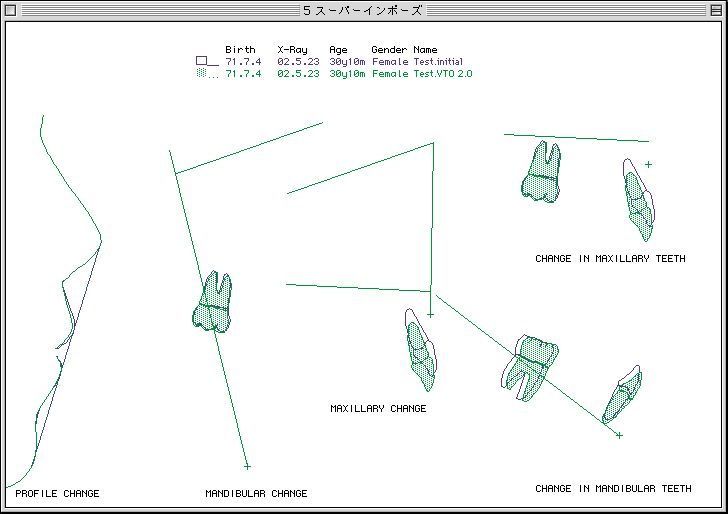

VTO of Dr. Ricketts
Visual Treatment Objective of Dr. Ricketts is supported.

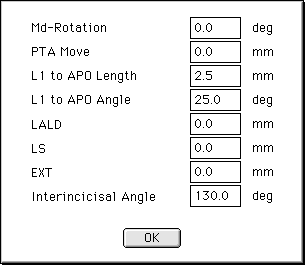

VTO is indicated when the years of the growth and each item are input.

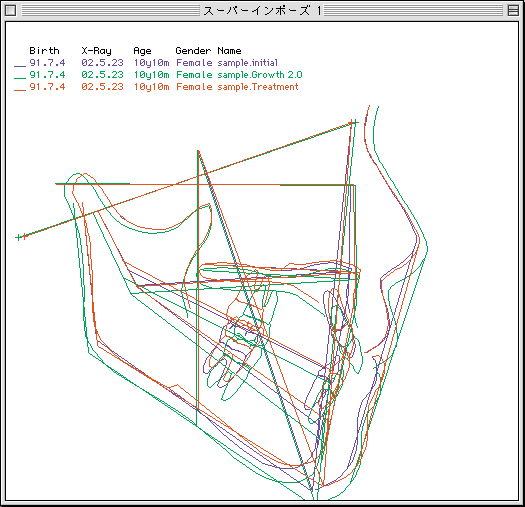

The comparison can be examined by superimpose and 5S.Growth data are registered according to the race.
A patient color image becomes the image which it grew to be automatically, too.

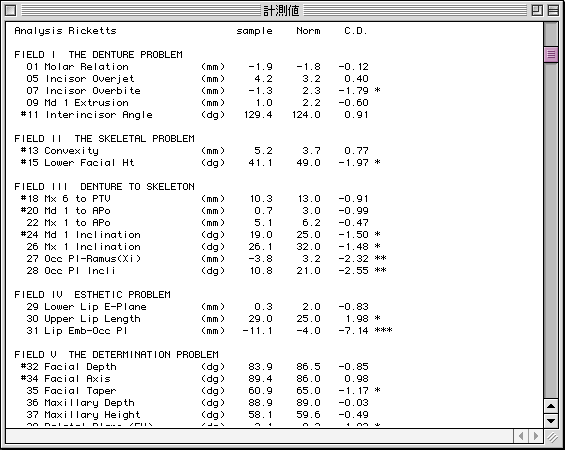

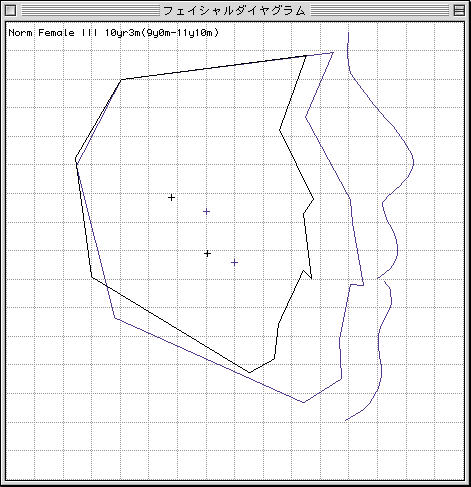

Measurement Polygon Facial Diagram Superimpose
OrthodonticsESurgical simulation function

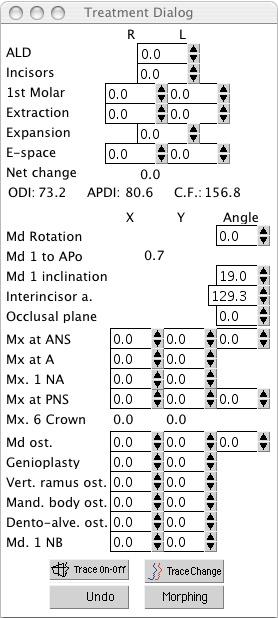

OrthodonticsEsurgical simulation@
Orthodontics and Surgical simulation can be done with Lateral and Frontal.
In case of Lateral, a Surgical simulation can be done cutting in the mandibular bone four places and the maxillary bone one place.Surgical input of numerical value can be inputed with a dialog.
User can define the amount of movemet of the soft tissue of the Orthodontic treatment simulation.

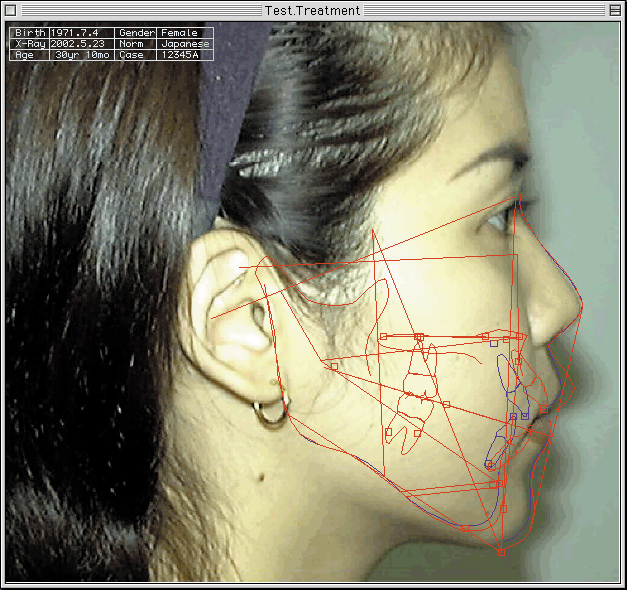

Morphing of the color image achieves a smooth simulation by the mapping technology.
Movement ratio setting of soft tissue.
As for the movement ratio of the soft tissue, settlement of user is possible.
In the addition of the operation of the hard tissue, a part of item is added.

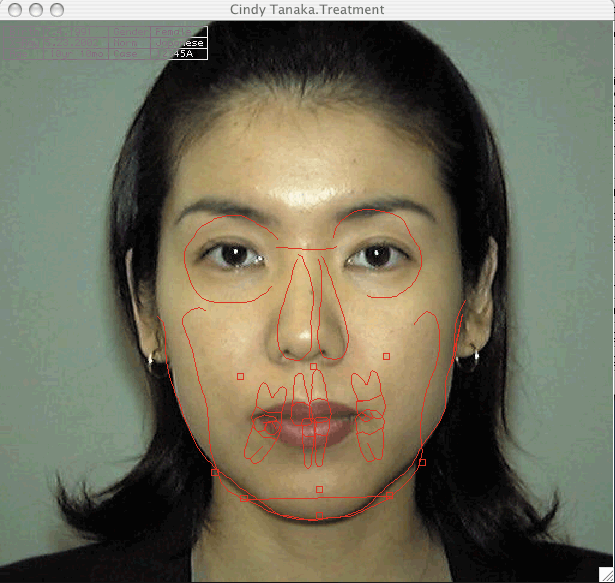

Frontal analysis and simulation
Frontal analysis of Ricketts and Symmetry as Lateral.
Surgical simulation is supported, and a treatment result prediction in Frontal is a function of only our company.

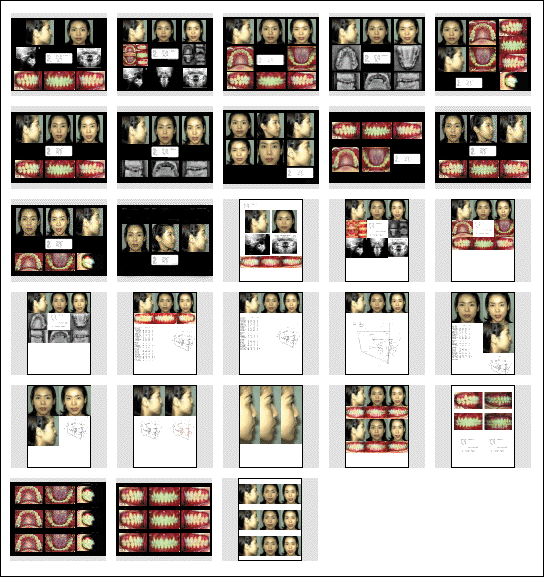

Plentiful view formats

The presentation of a similar case to the patient when consulting about the first medical examination by plentiful view formats can be done.
It is possible to print it out similary as a picture file of treatment process and treatment ends.
A format can be changed with a view palette in real time.

It corresponds to digital X-ray

IP plate method
It takas a picture with the X-ray equipment used in the clinic now in the imaging plate instead of a usual film, it is taken in with a special scanner as a digital data.
It is preserved by special software as a JPEG file.

CCD Scan method
The X-ray image is taken directly with CCD.
AtoZ corresponds with which above method as well, and there are delivery actual results in all the digital X-ray machine for the orthodontics of each company.

Customizable analysis

Ricketts, Steiner, McNamara, Downs&Kim, Jarabak, angle analysis, distance analysis, soft tissue analysis, Bimler analysis, Tweed, Roth, Arnet analysis and so on, fourteen kinds of Lateral analysis are possible by the standard.As for Frontal analysis, six kinds such as Ricketts and symmetry can be done.
In addition,submentovertex analysis is supported.
User can do the addition of the point and the definition of the analysis item.
The additional definition of the analysis point of the maximum 60 points can be done at Lateral and Frontal.
User can freely define analysis item, standard value, standard deviation, and indication line of 60 items.
Norm
Norm is defined at each analysis as the Japanese, the Caucasian, the Black, the Latin.A norm and standard deviation are possible customizing by User.
Downs-NorthWestern analysis(angle analysis), Linear analysis(distance analysis), and Facial diagram can select norm of each stage.
Definition of compression of the image
The JPEG compression ratio of the preservation image data of AtoZ can be define.The image is usually compressed into about one twelfth of.Because the hard disk became a large capacity at present, deterioration in the image can be prevented when it is preserved by No less or Minimum.
Data input is also easy
When you input the data after it treats to the same patient, the data such as data of birth input once can be succeeded.
If the file at the first medical examination is opened, the data can be copied on to a new data file only by pushing the button.
Time to input the same data many times can be saved.

Statistical work & file output

Statistical work and coordinate value
Standard value, standard deviation, and coordinate value of the patient data of original analysis are founded, Statistical work of the data after the treatment can be done in each clinic momentarily.
Output it to an external file
The analysis result can be output as an external file, and the data can be used for other statistical work such as SPSS.
It is possible to use it even by the spreadsheet Excel.
Measurement
The length of the segment and the value of the area can be output to the file as a miscellaneous function of the measurement.
The Measurement of the X-ray and an area calculation can be simply done besides the Cephalo analysis system.
Pasting of the image by copy and paste is possible
An image can be copied and pasted to other application.
The image that measurement value piled up with the trace line is output to letter sentence to introduction doctor by the word-processing software such as Word and it is possible to do easily.
Because the analysis image, the trace, and the measurement value can be pasted at Powerpoint, it is useful for the slide making for the announcement of the science thesis.
Transfer of the patient data
Our software can transfer data with the patient with E-mail and CD, etc.
It can use by opening that as it is as the analysis data.
If the other party has AtoZ, neither Macintosh nor Windows choose the model.
Windows &Macintosh version
CephaloMetrics AtoZ corresponds to either OS to Macintosh and Windows.
It corresponds to Windows 2000, XP, Mac OS 9.2,10.2~10.3.The data conversion software of Macintosh and Windows is prepared.

There is a network version that can use up to five at the same time with one key, and can use both Os even if existing together, too.


ĦIt is used in the wide field in such cases as Dentistry, Orthodontics department of medical college, Oral surgery, Pedodontics, Department of radiology, Department of prosthetics, Plastic surgery, respiratory organ, The sleep treatment, etc.

ĦA lot of doctors are using, and wonderful knowhow is feedback.

ĦA certain analysis and the diagnosis of AtoZ are effective to avoid a trifling trouble with the patient.

ĦThe doctor sees and consents in the demonstration of AtoZ.
In addition, the patient who was able to come to consult is surprised at the function of AtoZ.

ĦAtoZ can be used by Windows and Macintosh existing together.

ĦIt can access the same server from which chair side by putting the AtoZ network version.

ĦThe data of AtoZ can be sent easily with E-mail at the transfer of the patient.

ĦDoctors in every country of the world such as Europe and America, Asia are using AtoZ only the manual, E-mail and FAX support.
Many overseas users has increased also this year.

Do you have any question, fax us +81-776-33-5334 or E-mail
